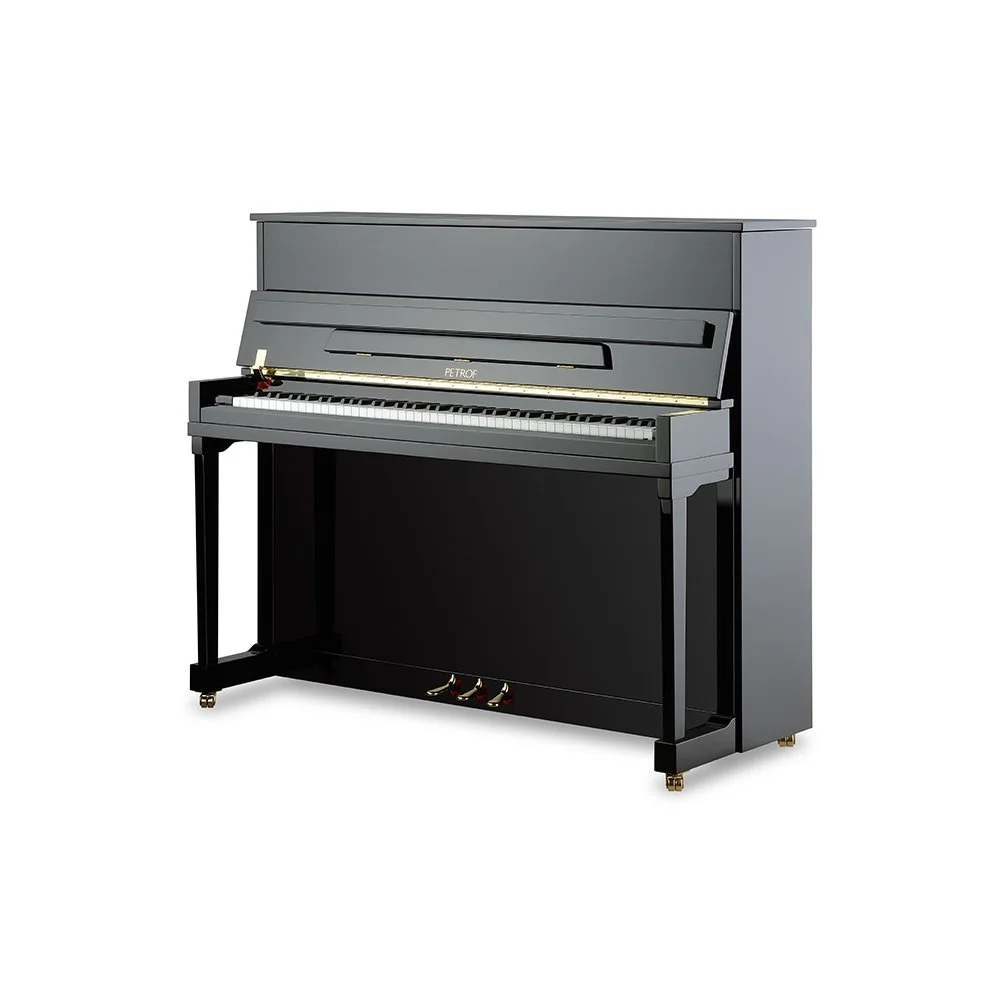

P122 H1 Upright
P122 H1 Upright

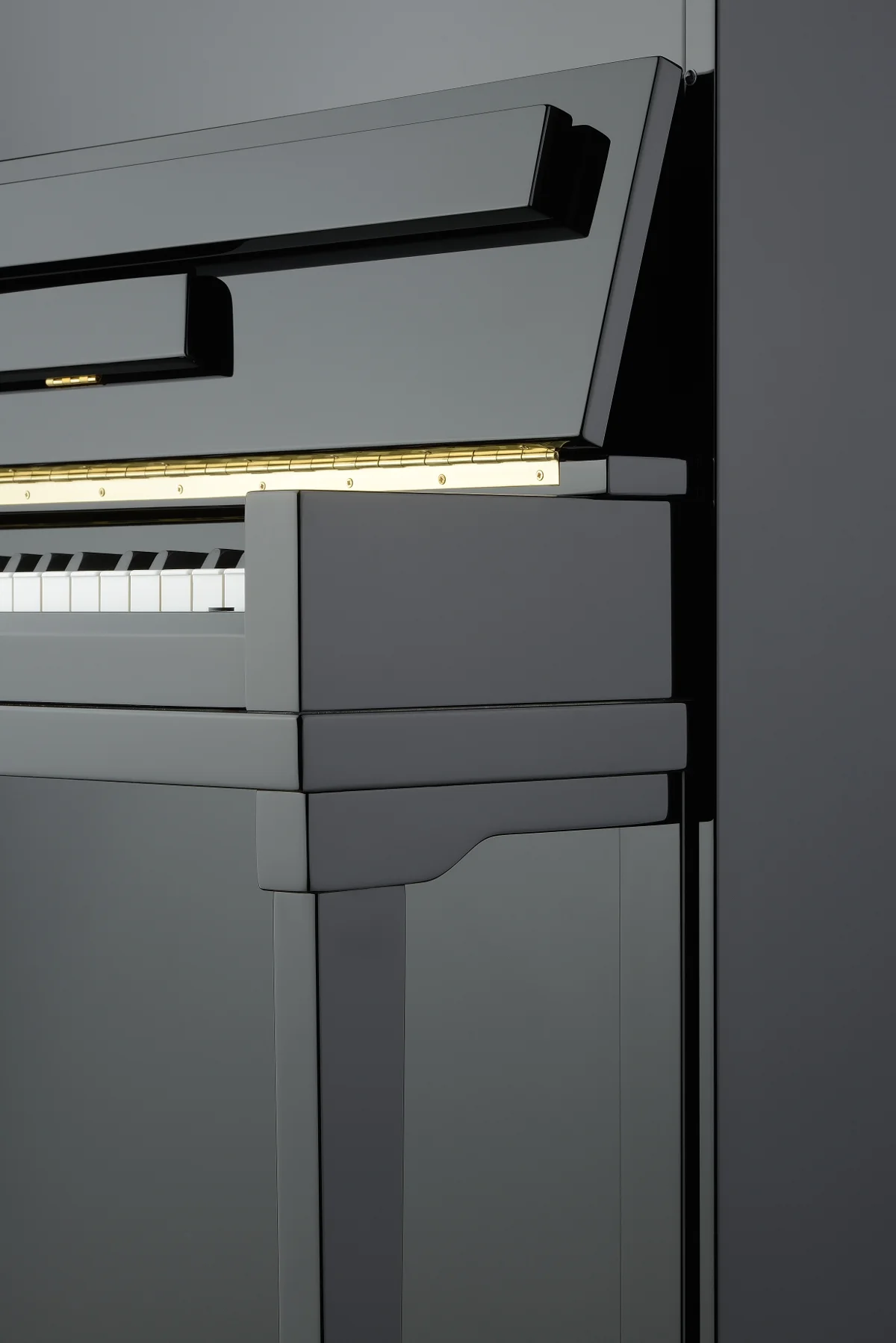

We developed the P122 H1 in answer to customer requests. With the design of its cabinet, and especially its distinctive keybed, it proudly harks back to the roots of the piano-maker’s art in Europe. While at first sight the cabinet appears minimalistic, it boasts some precisely elaborate and detailed features. The final shape of the instrument was the inspiration of specialists at our Technological centre, and we are sure that this piano will find many happy customers.
Technical Specifications
Depth (mm) 570
Width (mm) 1470
Height (mm) 1220
Weight (kg) 224
Soundboard material resonant spruce wood
Active area of soundboard(m²) 1,151
Ribs - number, shape 10, asymmetric
Soundboard construction wedgewise tapered 9 mm in upper section - 7 mm in lower section
Cast iron plate Wet sand casting
Surfacing of iron plate nitrocellulose paint with bronze dust added
Pin block - material Multiplex beech, density 800 - 850 kg/m3
Wooden frame construction, material spruce wood, 3+2 posts
Cut off bar (corner cross rib) - material, number beech, 2
Bridge - treble beech wood
Bridge - bass beech wood
Bridge pins steel-round tips
Agraffes material - number brass, 88
Strings - material Röslau steel wire from Germany, Degen copper winding from Germany
Hitching of plain strings double
Dampers - number 1 - 70
Black keys Acrylate plastic
Pedals left - Soft pedal, middle - Muffler pedal, right - Sustain pedal
Castors yes
Felt colour red
Hydraulic slow close fallboard mechanism yes
