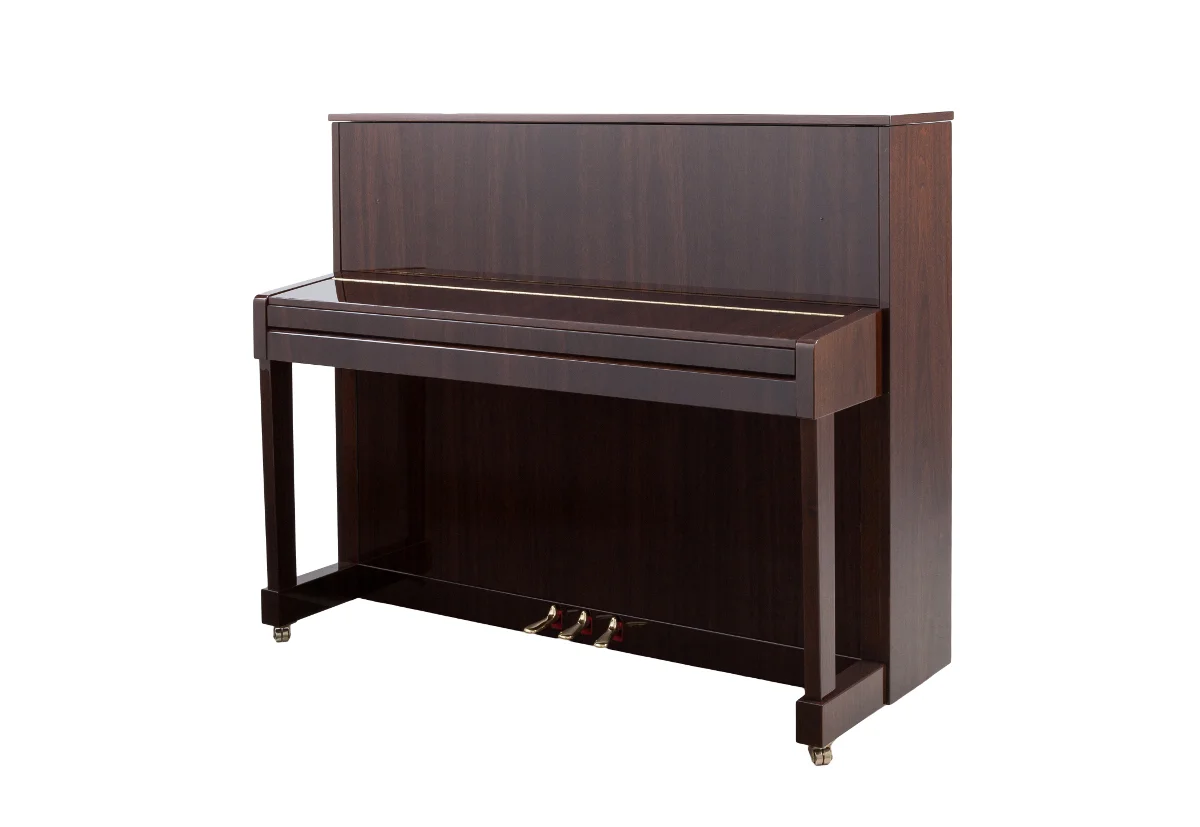

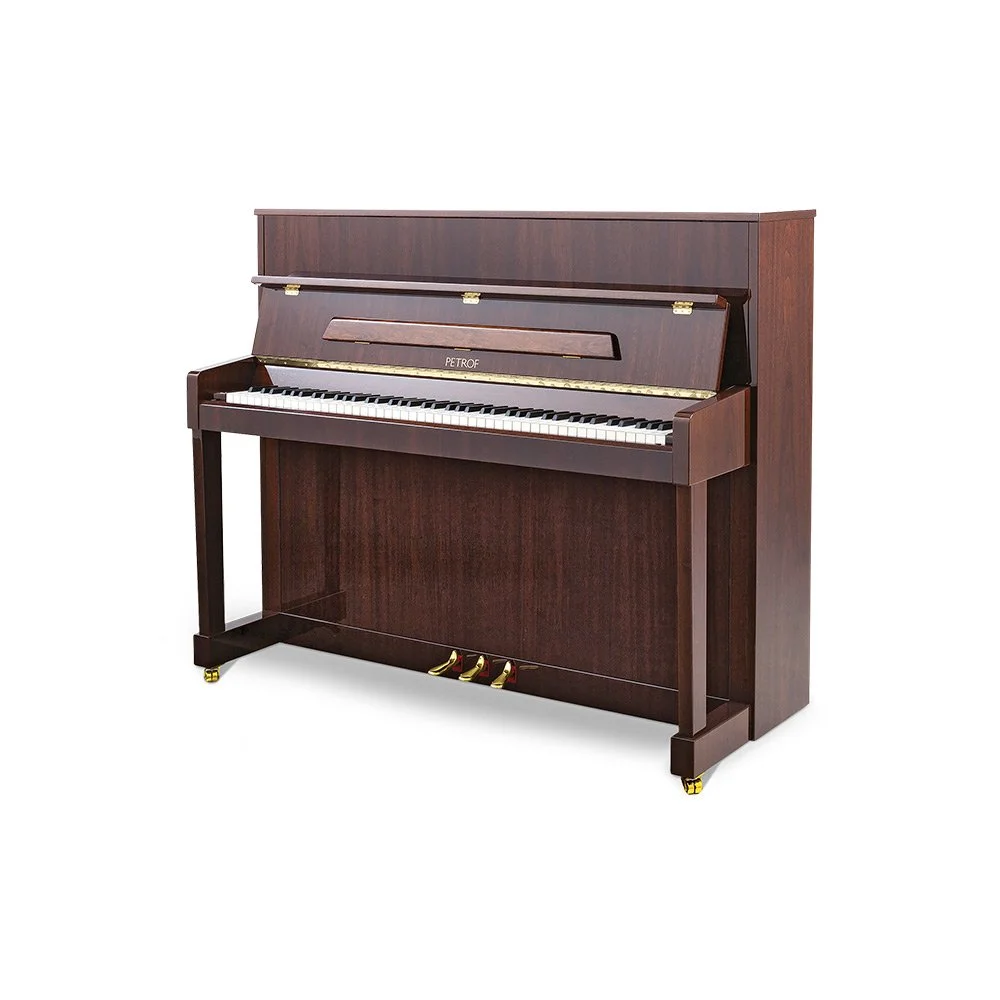

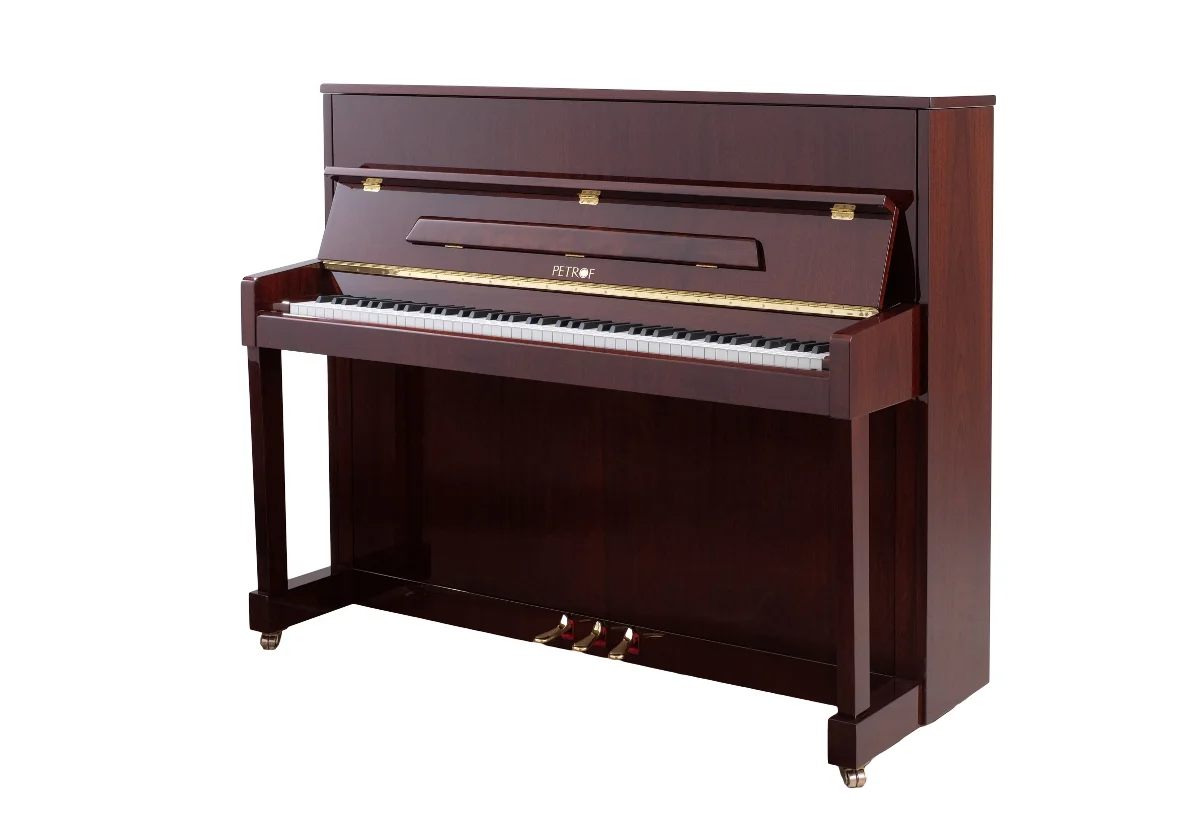

P118 M1 Upright
P118 M1 Upright
The Middle series would not be complete without the popular P 118 M1. Its size means you can place it in the smallest interior, where its romantic tone will sing out beautifully. You can pass many a pleasant hour with your family by this instrument, and perfect your keyboard playing. Its design makes it blend superbly with modern furnishings.
Technical Specifications
Depth (mm) 541
Width (mm) 1445
Height (mm) 1180
Weight (kg) 212
Soundboard material resonant spruce wood
Active area of soundboard(m²) 1,060
Ribs - number, shape 9, spherical
Soundboard construction wedgewise tapered 9 mm in upper section - 7 mm in lower section
Cast iron plate Wet sand casting
Surfacing of iron plate nitrocellulose paint with bronze dust added
Pin block - material Multiplex beech, density 800 - 850 kg/m3
Wooden frame construction, material beech, frame construction
Cut off bar (corner cross rib) - material, number beech, 1
Cabinet material MDF, plywood, solid wood
Bridge - treble beech wood
Bridge - bass beech wood
Bridge pins steel-round tips
Agraffes material - number brass, 88
Strings - material Röslau steel wire from Germany, Degen copper winding from Germany
Hitching of plain strings double
Dampers - number 1 - 70
Pedals left - Soft pedal, middle - Muffler pedal, right - Sustain pedal
Castors yes
Felt colour red
Hydraulic slow close fallboard mechanism yes
